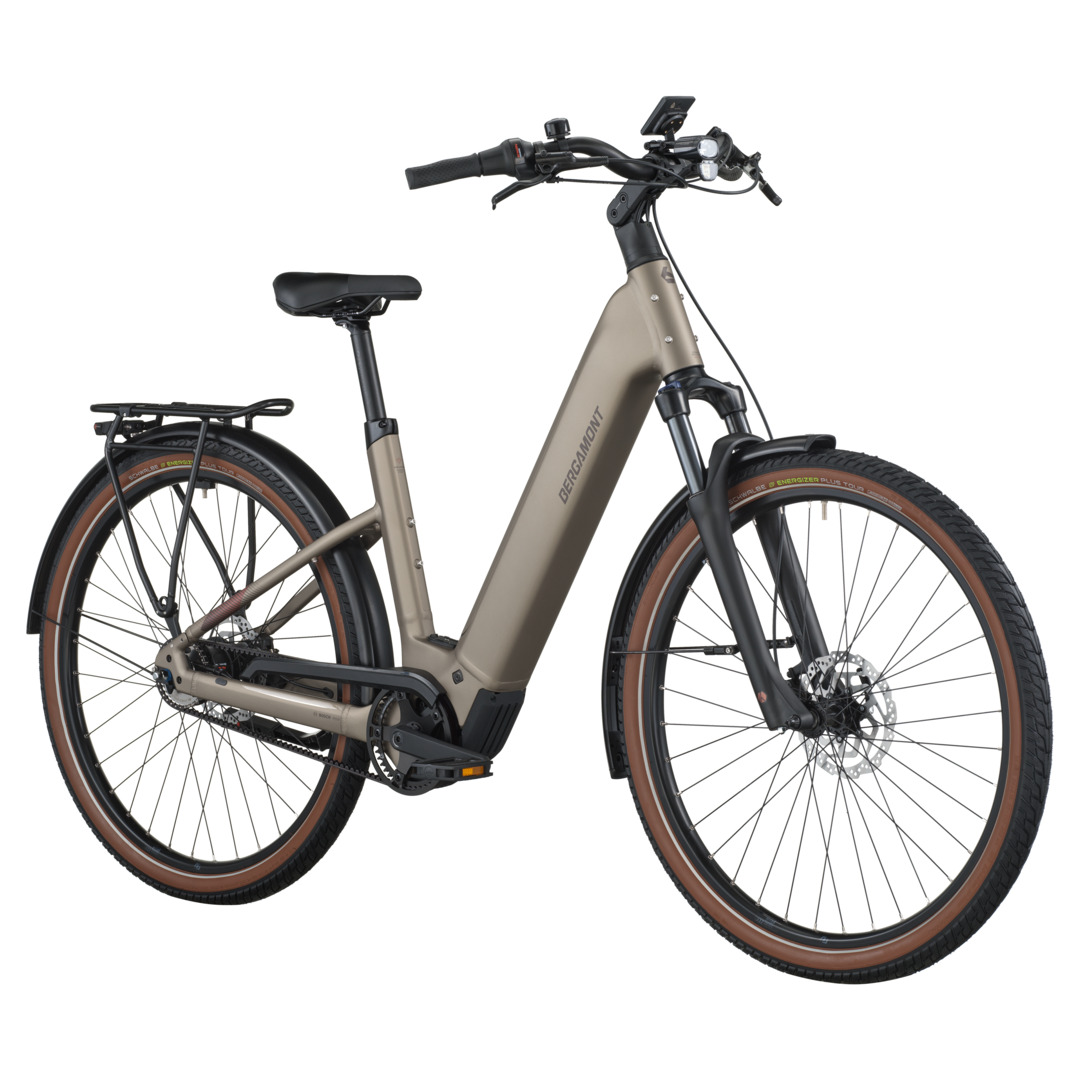

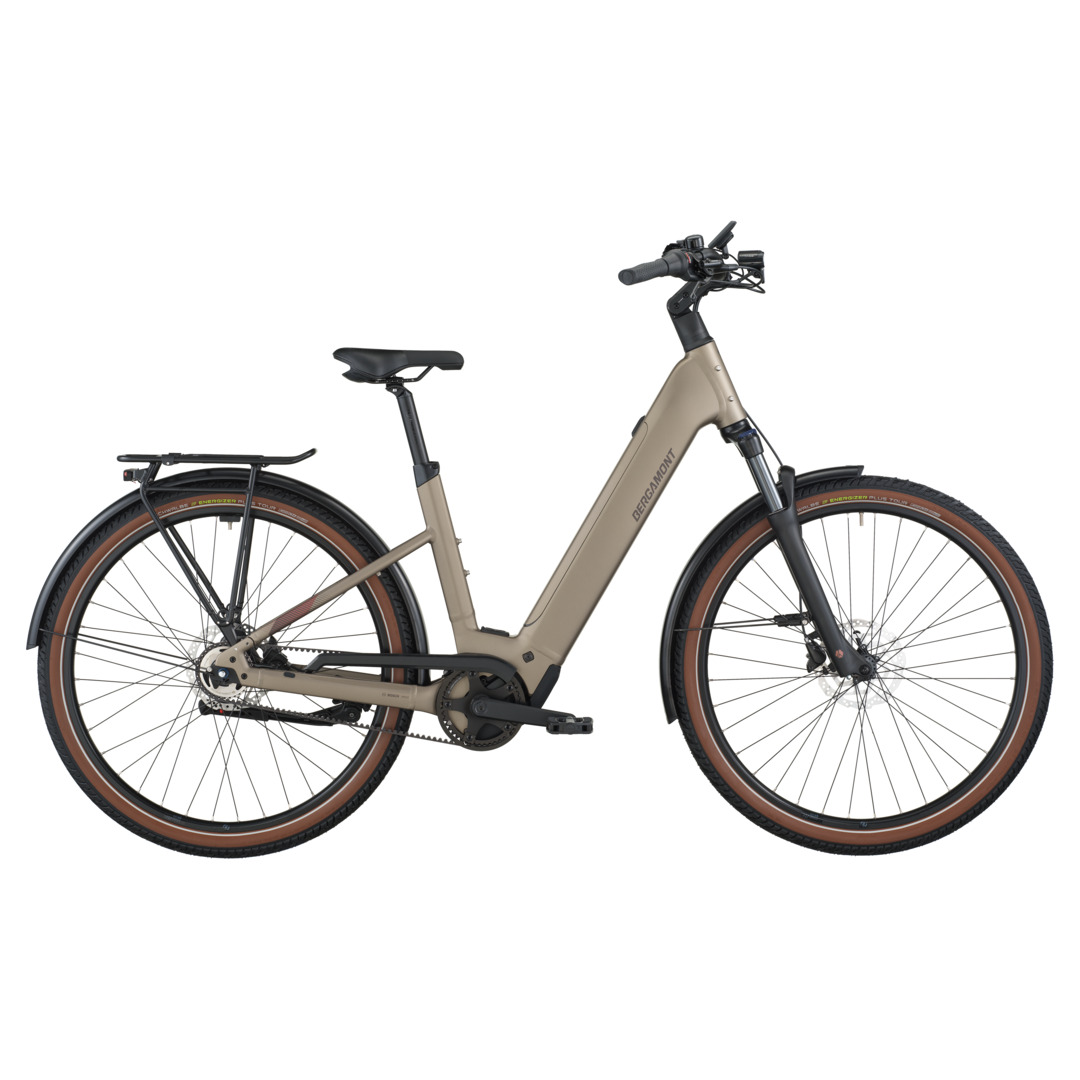

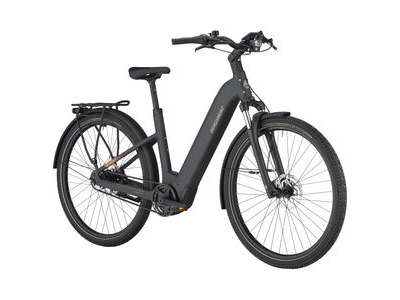

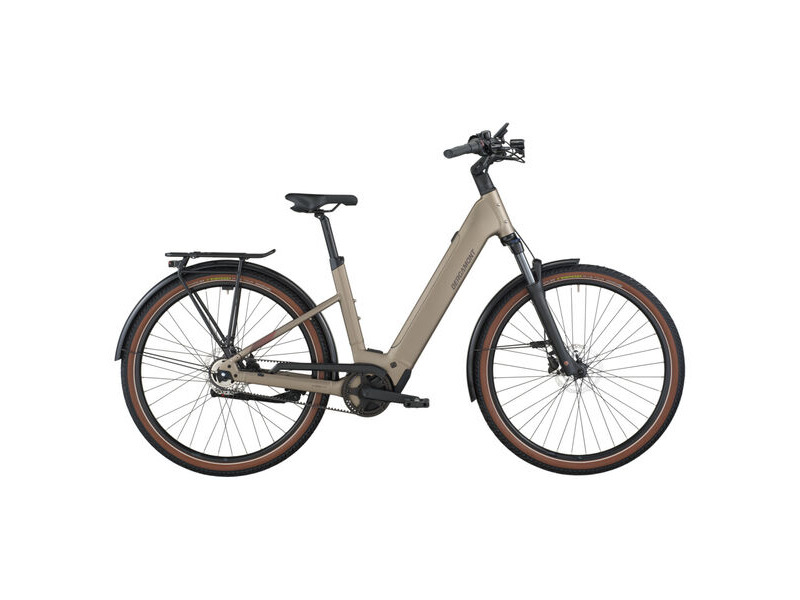

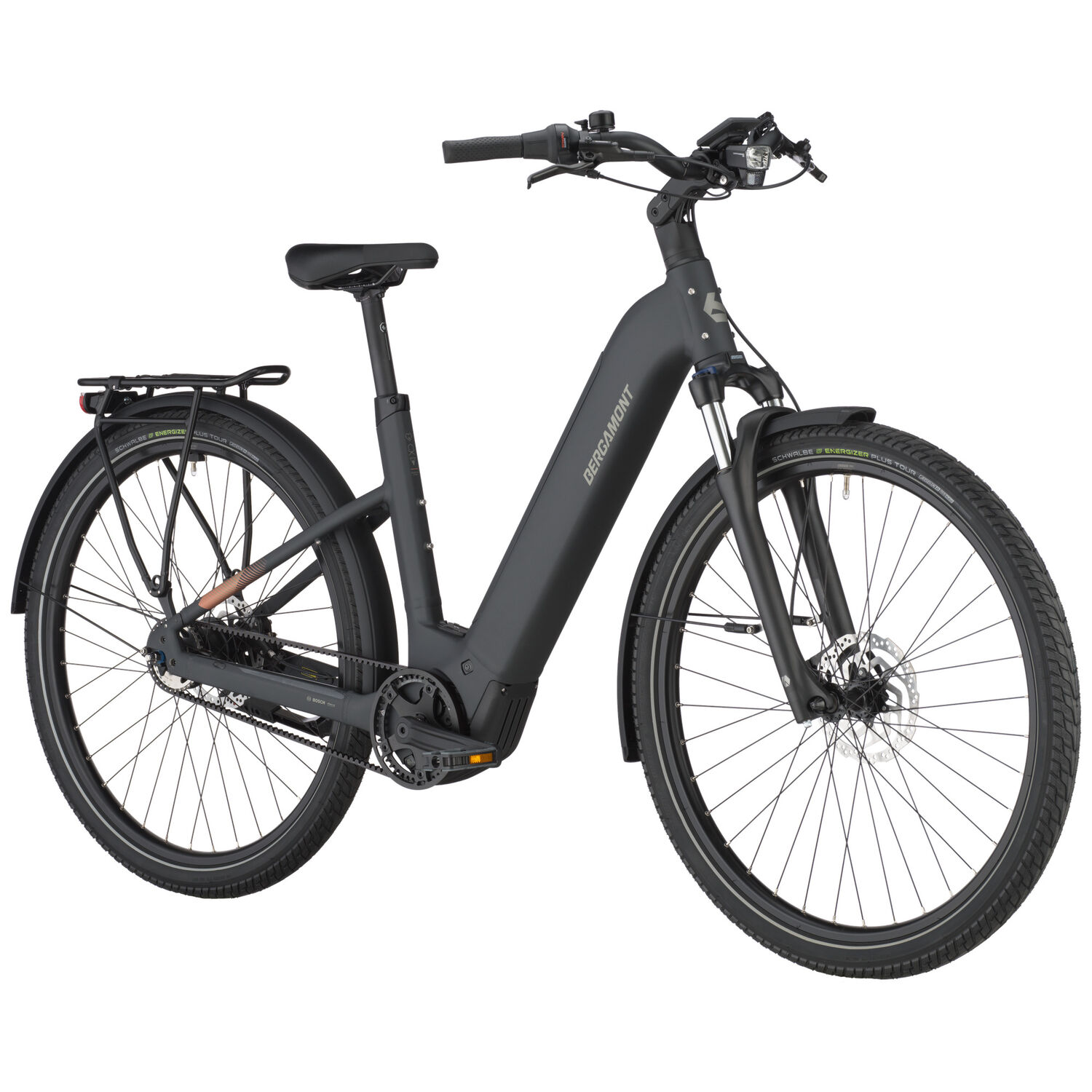

The E-Horizon Tour Wave is a fully equipped e-trekking bike with a low step-over height and perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp 2 Maxi seat. The internal gear hub drivetrain provides reliable shifting and is low maintenance. The hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes.The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
| Options | S Warm Silver In Stock (Warehouse) M Warm Silver In Stock (Warehouse) L Warm Silver In Stock (Warehouse) XL Warm Silver In Stock (Warehouse) |
|---|---|
| Features |
SpecificationsFrame : 28", super lite AL-6061 tubing, PowerTube batteryFork: Suntour NVX 30 DS NLO, 75 mm Fork Suspension Travel: 75 Shift Levers: Shimano Nexus, SL-C7000, 5-speed, revo-shifter Number Of Gears: 5 Brake Front: Shimano BR-MT200, hydraulic disc brake Brake Rear: Shimano BR-MT200, hydraulic disc brake Brake Lever Front: Shimano BL-MT200, hydraulic disc brake Brake Lever Rear: Shimano BL-MT200, hydraulic disc brake Brake Disc Front: Shimano SM-RT10, 180 mm Brake Disc Rear: Shimano SM-RT10, 180 mm Rims: BGM Pro X17, disc, eyelets Tire Front: Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622 Tire Rear: Schwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622 Hub Front: Shimano HB-MT200, centerlock, disc, quick release Hub Rear: Shimano Nexus, SG-C7000-5, freehub, centerlock, disc Spokes: stainless, black Handlebar: Satori Seagull, riserbar, backsweep: 40deg., rise: 40 mm Stem: Satori Python, adjustable Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing Grips: Syncros Urban, Ergo, double density, lock-on Saddle: Syncros Capilano City Seat Post: BGM Pro Crankset: FSA CK-320, 170 mm, belt, 46t Bottom Bracket: Bosch, Isis Drive: Gates CDX Carbon Drive Belt, Center-Track Sprockets: Gates CDX, 32t Pedals: Marwi SP-827, sandblock Front Light: Trelock LS830, 80 Lux, LED Rear Light: Axa Juno, LED, with brake light function Rack: Racktime / BGM Trekking Pro, Snapit 2.0 System Mudguards: Curana Orbit, with stainless stays Stand: Syncros U-mount Bidex Mo: MO12 Bidex Mp: MP20 Bidex Mt: MT25 Motor: Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h Battery: Bosch PowerTube, 36 V Li Ion, 600 Wh Battery Capacity: 600 Display: Bosch Intuvia 100 with LED Remote Charger: Bosch Standard Charger, 4A Bodysize Min: 150 Bodysize Max: 160 Weight: 30,1 Permissible Total Weight: 130,0 Stack: 696 Reach: 399 Seat Tube Length: 440 Seat Tube Angle: 76 Top Tube Length: 575 Head Tube Length: 160 Head Tube Angle: 67 Stem Length: 90 Handlebar Width: 660 Handlebar Rise: 40 Handlebar Backsweep: 40 Wheelbase: 1214 Standover: 448 Chainstay Length: 495 Fork Rake: 51 Fork Installation Length: 547 Bottom Bracket Height: 312 Bottom Bracket Drop: 63 Bottom Bracket Housing: BH90 Crank Length: 170 |
